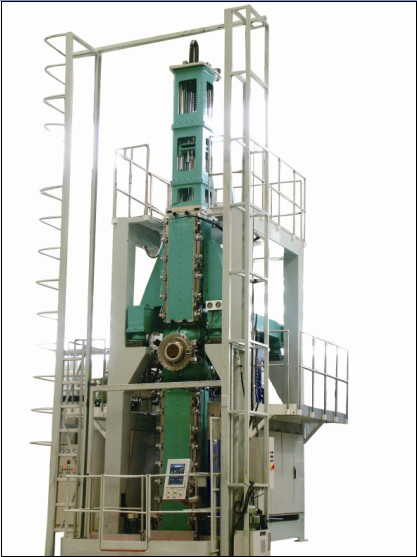

JQ-900 is a kind of large-scale float-zone monocrystalline silicon furnace with the characteristic of high-reliability, high-precision and high- automation which integrates optic, mechanic and electronic together. The performance of the equipment has reached the international advanced level of similar products. It mainly produces large scale FZ monocrystalline silicon of 6-8 inch. The maximum length of the FZ monocrystalline silicon is 2500mm and the highest purity is 99.99999999%.The FZ monocrystalline silicon wafers are available for the sophisticated fields such as IGBT, SCR, infrared detector, aerospace and navigation. Furthermore, with the high photoelectric conversion efficiency of 23%, we can attempt boldly to use it on the photovoltaic industry.



1.

Main Chamber

Inner Chamber Diameter[mm]

Φ902X1190H

2

Upper Vice Chamber

Chamber Diameter[mm]

Φ500 X1800H

3

Lower Vice Chamber

Chamber Diameter[mm]

Φ500 X2500H

4

Upper Transmission

Travel[mm]

2000

Main Shaft Rotation[rpm]

0-30±1%

Main Shaft Diameter[mm]

100

5

Lower Transmission

Main Shaft Travel[mm]

2600

Main Shaft Rotation[rpm]

0-30±1%

Main Shaft Diameter[mm]

100

Inner Shaft Travel[mm]

340

6

Translation Component

Travel[mm]

±25

7

Slot Component

Travel[mm]

530

8

Reflection Ring

Travel[mm]

50

Quick Travel Speed[mm/min]

20

9

Preheating Ring Component

Travel[mm]

285

Quick Travel Speed[mm/min]

100

10

Required Area of Grower

L × W × H [mm]

6600X4200X14000

11

Vaccum System

Vaccum Degree(mbar)

≤0.01

12

Air Circuit System

Intake Pressure[Ba]

5-12(Recommend   10)

Phase Flow[L/min]

50

Gas Quality

C57-0305,Degree   4.8

13

Cooling System

Intake Pressure[Ba]

4-6

Intake Temperature[°C]

12-25

Intake Flow[L/min]

200

Physical Cleanliness[mm]

0.38

14

Electrical Related

Power Frequency[Hz]

50或60

Power Voltage[VAc]

3X380

Generator Output Power(kW)

120KW

Control Power Supply(Hz)

50或60

Power Voltage[VAc]

3X380

Power

10KW

Curernt Input rectifier filter

yes

Control System

Siemens S7-300

Human-Computer Interface Control

Pro-face Touch Panel

CCD Monitoring System

KEYENCE

Upper and lower transmission drives

Lenze Drive
